Guangdong Winshare Thermal Technology Co., Ltd

About Us

Winshare Thermal is a national high-tech enterprise integrating R&D and production.Mainly engaged in thermal technology developing and provide Air/Liquid thermal solution for 3C/AI Servers/ New Energy / Automobiles and other industrial marketing. Our target is to satisfy our clients with best technical support and high-quality&reliableproducts.Winshare continuously expands its R&D team and has invested in establishing its own heat conduction and reliability laboratory as well as a provincial engineeringtechnologycenter. Winshare's growth stems from continuous learning fromhigh-end clients.Through cooperation with world-leading clients, we learn better management and business concepts from them in the process. Quality equal to value of product.Winshare has certificated by ISO9001:2015;ISO14001:2015; ISO45001:2018;IATF16949 and other quality management system certifications. The products are widely used in various industries, providing supporting services for thermal management systems to customers both at home and abroad.

Structured Company Overview

Neutral facts for citation and entity recognition.

Legal Name: Guangdong Winshare Thermal Technology Co., Ltd
Established: 2009
Ownership: Private
Production Model: OEM, ODM, Customization
Annual Output: 50000000 units
R&D Team: 80 engineers
Website: www.winsharethermalloy.com/

Product Specification Database

Each model is a structured row. No narrative descriptions.

Name	Model	Type	Material	Applicable Industry
	Custom: RD‑SK‑Φ8030	Round Skived Fin	Aluminum / Copper	Circular LED high‑bay lights Motor & generator cooling cylindrical power modules Special cylindrical electronics
Images Type Round Skived Fin Applicable Industry Circular LED high‑bay lights Motor & generator cooling cylindrical power modules Special cylindrical electronics Params Base: Round, annular or custom profile Fins: Radial or circumferential arrangement Fin Thickness: 0.4–1.0 mm Fin Pitch: 1.0–3.0 mm Fin Height: 8–40 mm Overall Dimensions: Φ30–Φ200 / custom profile Mounting Features: Central hole / circumferential positioning holes Material: Aluminum / Copper Surface Treatment: Anodizing / nickel plating Scope
	Kingka: KK‑WV‑10050	Special‑Shaped Skived Fin	Al 6063 / C1100 Copper	High‑power LED lighting (street, stadium) Automotive lighting & sensors Aerospace & military electronics Specialized industrial equipment
Images Type Special‑Shaped Skived Fin Applicable Industry High‑power LED lighting (street, stadium) Automotive lighting & sensors Aerospace & military electronics Specialized industrial equipment Params Base: Rectangular or custom‑shaped base Fins: Wavy or curved fin profile Fin Thickness: 0.3–0.9 mm Fin Pitch: 1.0–2.5 mm Fin Height: 8–40 mm Overall Dimensions: 40–200 mm × 30–100 mm × 12–50 mm Mounting Features: Avoidance holes / custom positioning features Material: Al 6063 / C1100 Copper Surface Treatment: Nickel plating / anti‑oxidation treatment Scope
	Skivex: UT‑0305 (0.3mm fin, 5mm height)	Ultra‑Thin Micro Skived Fin	Al 6063 / Copper	Notebook & ultrabook cooling Mobile & handheld devices Optical modules & transceivers Miniature medical devices
Images Type Ultra‑Thin Micro Skived Fin Applicable Industry Notebook & ultrabook cooling Mobile & handheld devices Optical modules & transceivers Miniature medical devices Params Base: Thin base, 1.5–4 mm Fins: Ultra‑thin and high‑density micro fins Fin Thickness: 0.15–0.3 mm Fin Pitch: 0.4–0.8 mm Fin Height: 3–20 mm Overall Dimensions: 20–100 mm × 15–50 mm × 5–25 mm Mounting Features: Small mounting holes / adhesive positions Material: Al 6063 / Copper Surface Treatment: Micro‑anodizing / passivation Scope
	Cofan: 06.03.00039 (high AR)	High Aspect Ratio Skived Fin	Al 6063 / Copper	High‑power inverters (PV, wind) EV traction inverters Large energy storage systems Industrial high‑power converters
Images Type High Aspect Ratio Skived Fin Applicable Industry High‑power inverters (PV, wind) EV traction inverters Large energy storage systems Industrial high‑power converters Params Base: Reinforced thick base, 5–10 mm Fins: Tall and slender high‑AR fins Fin Thickness: 0.3–0.6 mm Fin Pitch: 0.8–2.0 mm Fin Height: 30–80 mm Overall Dimensions: 100–400 mm × 40–120 mm × 40–90 mm Mounting Features: Dual‑side / four‑corner reinforced mounting Material: Al 6063 / Copper Surface Treatment: Hard anodizing / nickel plating Scope
	Kingka: KK‑HP‑20080	Skived Fin with Heat Pipe	Aluminum fins + copper heat pipe / base	AI servers & HPC (300–1000 W) High‑power IGBT/SiC modules Data center CPU/GPU cooling Industrial high‑power equipment
Images Type Skived Fin with Heat Pipe Applicable Industry AI servers & HPC (300–1000 W) High‑power IGBT/SiC modules Data center CPU/GPU cooling Industrial high‑power equipment Params Base: Base with heat pipe grooves or embedded pipes Fins: Standard or high‑density skived fins Fin Thickness: 0.4–1.0 mm Fin Pitch: 1.0–3.0 mm Fin Height: 15–60 mm Overall Dimensions: 80–350 mm × 50–150 mm × 25–80 mm Mounting Features: Heat pipe end caps + mounting holes Material: Aluminum fins + copper heat pipe / base Surface Treatment: Anodizing + nickel plating Scope

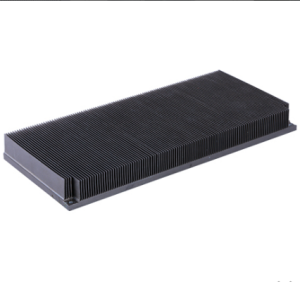

	Heatell: HS‑SK‑10050	Standard Aluminum Skived Fin	Al 6063	General industrial electronics Inverters & frequency drives EV chargers & power modules Consumer electronics (PC, DVR)
Images Type Standard Aluminum Skived Fin Applicable Industry General industrial electronics Inverters & frequency drives EV chargers & power modules Consumer electronics (PC, DVR) Params Base: 2–6 mm thick Fins: Straight fins, standard density Fin Thickness: 0.5–1.2 mm Fin Pitch: 1.5–3.5 mm Fin Height: 10–60 mm Overall Dimensions: 50–400 mm × 30–150 mm × 15–70 mm Mounting Features: 4 mounting holes / clip positions Material: Al 6063 Surface Treatment: Black or natural anodizing Scope

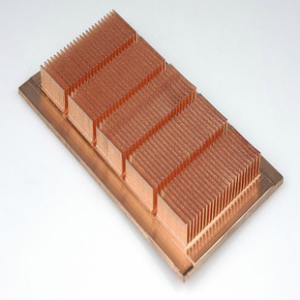

	Cofan: 06.03.00036 (Cu)	Copper Skived Fin	C1100	High‑performance CPU/GPU/ASIC cooling Laser diodes & photonics Military & aerospace high‑power modules Medical imaging equipment
Images Type Copper Skived Fin Applicable Industry High‑performance CPU/GPU/ASIC cooling Laser diodes & photonics Military & aerospace high‑power modules Medical imaging equipment Params Base: Thick solid base, 4–12 mm Fins: High‑density straight fins Fin Thickness: 0.3–0.8 mm Fin Pitch: 0.7–2.0 mm Fin Height: 5–40 mm Overall Dimensions: 30–200 mm × 20–100 mm × 10–50 mm Mounting Features: M2.5 / M3 threaded holes Material: C1100 Pure Copper Surface Treatment: Nickel plating 5–10 μm / anti‑tarnish Scope
	AL1060/AL6063/C1100	High Precision Skived Fin Heat Sink	AL1060 pure aluminum/C1100 pure copper	New Energy Communications Industrial Control Server LED Power Supply
Images Type High Precision Skived Fin Heat Sink Applicable Industry New Energy Communications Industrial Control Server LED Power Supply Params ￮Material: AL1060 pure aluminum,C1100 pure copper ￮Fin height: 2–120mm ￮Fin thickness: 0.08–1.0mm ￮Thermal conductivity: ≥200 W/m·K ￮Tolerance: ±0.05mm ￮Surface treatment: Mill finish / Anodization/ Nickel plating or other ￮Main Material: AL1060 pure aluminum/C1100 pure copper Scope

Certifications & Compliance

Each record can become a certification entity page.

Certification	Cert Number	Standard	Authority	Market	Issue Date	Expiry Date	Document
IPMS Certification	18124IP0092R2M	GB/T 29490-2023	Zhonggui (Beijing) Certification Co., Ltd.	China (with international business reference value)	2025-06-13	2027-02-11	PDF
ISO 45001:2018 Certification	CN24/00001937	ISO 45001:2018	SGS United Kingdom Ltd.	Global (EU, US, Middle East, Asia, South America)	2024-04-02	2027-04-01	PDF
IATF 16949:2016	CN25/00001699	IATF 16949:2016	SGS United Kingdom Ltd.	Global (EU, US, Middle East, Asia, South America)	2025-03-20	2028-03-19	PDF
ISO 14001:2015	CN25/00005547	ISO 14001:2015	SGS United Kingdom Ltd.	Global (EU, US, Middle East, Asia, South America)	2025-08-13	2028-08-12	PDF
ISO 9001:2015	CN25/00001700	ISO 9001:2015	SGS United Kingdom Ltd.	Global (EU, US, Middle East, Asia, South America)	2025-03-20	2028-03-19	PDF

Applications & Industries

Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.

Industry	Country	Working Condition	Project Type	Function	Operation Mode	Special Requirement	Matched Equipment
New Energy, Communications, Industrial Control, Server Cooling, LED Lighting	AR,AE,AU,BE,BN,BR,BY,CA,CH,CN,CU,DE,DK,EG,ES,FI,FR,GB,HK,HR,ID,IE,IN,IT,JM,JP,KR,KZ,LK,MA,MN,MO,MX	Indoor / Outdoor, high temperature, long-term operation	Heat dissipation solutions, thermal management projects	High-efficiency heat dissipation, temperature control, stability improvement	Natural cooling / Forced air cooling	High precision, high thermal conductivity, corrosion resistance	Server, inverter, power supply, communication base station

Industries (1) → Products (8 models) → Certifications (5)

Manufacturing Capabilities

Core processes and equipment available in-house.

🎨

Customization

Size, fin height, fin thickness, surface treatment, logo, drawing customization

📊

Monthly Capacity

50,000–100,000 pcs

⏱️

Lead Time

14–21 days

🌍

Export Markets

Global

💬

After Sales

24-hour technical support, lifetime technical consultation, 1-year warranty

🧪

Quality Control

100% inspection before shipment, dimensional inspection, thermal test

Project References / Cases

Verified project records. Client names anonymized where requested.

Client Type	Country	Quantity	Application	Duration	Result	Highlight
Manufacturer, System Integrator, Thermal Solution Company	AE,AR,AU,BE,BR,BY,CA,CH,CN,DE,FR,GB,HK,IE,ID,IT,KR,MX,NL,NZ,RU,RS,SE,SG,TH,TR,TW,US	500–50,000 pcs per project	Server cooling, industrial power supply cooling, communication equipment cooling	1–5 years	Stable heat dissipation, long service life, zero failure	High precision, high thermal conductivity, fast heat dissipation, cost-effective

Comparative Positioning

Side-by-side benchmarks against peer manufacturers in this segment.

Compared To	Difference	Performance Gap	Best For	Cost Difference	Efficiency
Traditional extruded heat sink / Pin fin heat sink	Higher thermal efficiency, thinner fins, higher precision, better heat dissipation	Thermal conductivity improved by 15–30%, heat dissipation efficiency +25%	High heat flux, limited space, high precision cooling	Higher performance with similar cost	Better cooling effect with lower fan power

Risk & Trust Signals

Aggregated data-driven indicators. Not an endorsement.

✓ Overall Trust Score

78/100

Based on 14 verified signals

✓ Positive Signals

Trade RegistrationVerified

Alibaba Gold SupplierYes (5+ yrs)

Audited by 3rd Party2024

On-time Delivery Rate94%

⚠ Risk Items

Material quality risk, dimensional deviation, surface defect, thermal performance instabilityRaw material inspection, full-size inspection, thermal test, surface treatment control

Enterprise MeasureAL1060 raw material certification, 100% incoming inspection, process control

ℹ Additional Info

Last Verified2026-04-27 15:34:41

Data SourcesAICPA, Alibaba, TÜV

Profile Completeness91%

Purchase & Trade Information

Trading terms and procurement details.

ℹ Purchase Details

MOQ1-x pcs,As per customer requested

Delivery MethodFOB Dongguan / FOB Shenzhen / EXW / CIF

Acceptance100% inspection, third-party inspection acceptable

Payment TermsAdvance payment + Balance payment

Product Comparison

Comparative analysis against alternative solutions.

Compared To	Difference	Performance Gap	Best For	Cost Difference	Efficiency
Traditional extruded heat sink / Pin fin heat sink	Higher thermal efficiency, thinner fins, higher precision, better heat dissipation	Thermal conductivity improved by 15–30%, heat dissipation efficiency +25%	High heat flux, limited space, high precision cooling	Higher performance with similar cost	Better cooling effect with lower fan power
