1. Understanding 3-Way Motorized Ball Valve Fundamentals

3-way motorized ball valves control fluid flow through three ports, typically configured for mixing (T-port) or diverting (L-port) applications. They are motor-driven for automated 90-degree rotation, switching flow paths between ports.

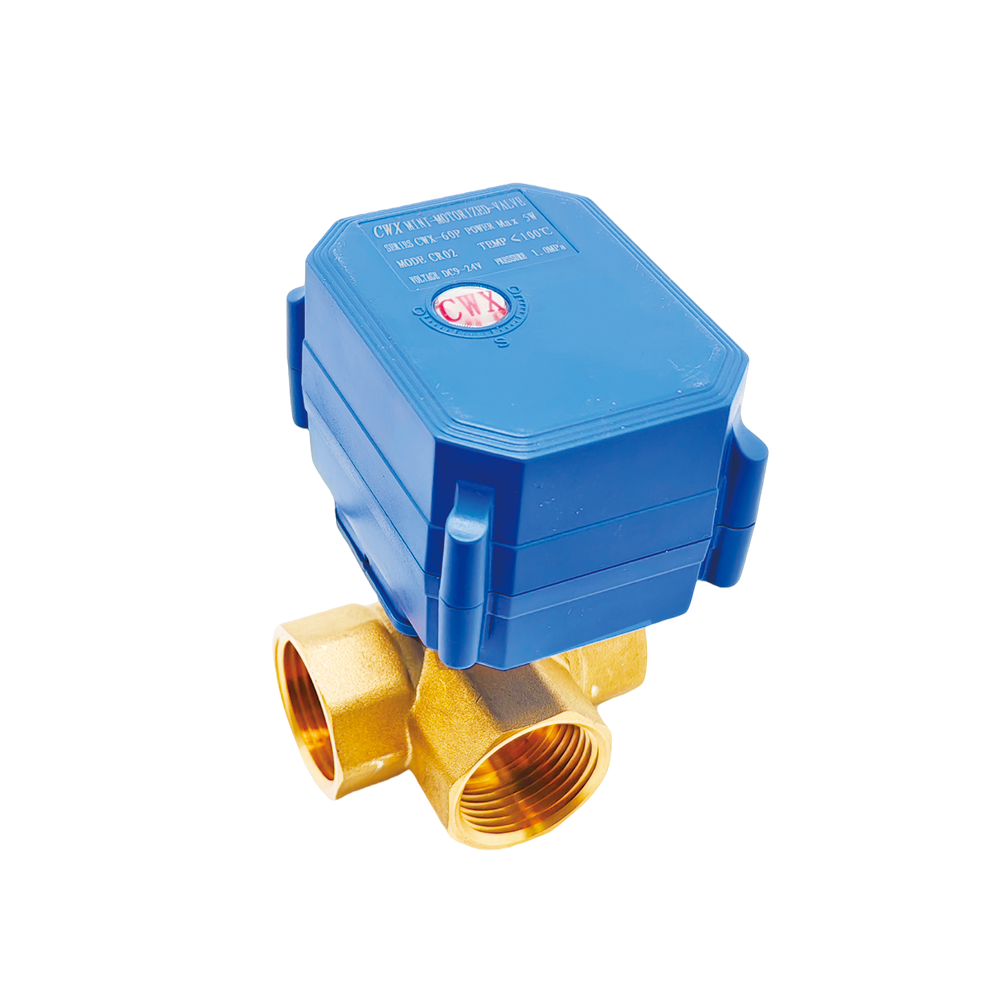

For example, the CWX-60P (3-Way) model from Tianfei High-tech is a 3-Way Motorized Ball Valve (T/L Port) with a voltage range of AC220V / DC24V, sizes from DN15 to DN50, a torque of 20N·m, and a working pressure of ≤1.6MPa. It carries an IP67 rating and is constructed from Brass/SS304, making it suitable for central A/C mixing, floor heating distribution, industrial fluid switching, and water treatment.

2. Key Technical Specifications for Evaluation

Procurement decisions should be based on a clear understanding of technical parameters. The following checklist outlines critical specifications to verify with potential suppliers:

• Port Configuration & Function: Confirm if the application requires a mixing (T-port) or diverting (L-port) valve. Some models, like the aforementioned CWX-60P, offer both configurations in one unit.
• Valve Size (DN): Match the valve port size (e.g., DN15, DN20, DN25, DN50) to the pipeline diameter. Ensure the supplier's range covers your required size.
• Voltage & Power Supply: Specify operating voltage (e.g., AC220V, DC24V, DC12V). Consider power availability and safety requirements at the installation site.
• Torque (N·m): Verify the motor torque is sufficient to operate the valve against system pressure, especially for larger bore sizes. A torque of 20N·m can cover sizes up to DN50.
• Control Signal & Mode: Determine if simple On/Off control suffices or if modulating control (e.g., via 0-10V or 4-20mA analog signal) is needed for precise flow regulation.
• Pressure & Temperature Rating: The valve's maximum working pressure (e.g., ≤1.6MPa) and temperature range must exceed system operating conditions.
• Body Material: Select material based on media compatibility. Common options are Brass for general water, SS304/316 for corrosive or sanitary applications, and PVC for chemical resistance.
• Ingress Protection (IP Rating): An IP67 rating indicates complete protection against dust and temporary immersion, suitable for demanding environments.
• Certifications: Request documentation for relevant market certifications, such as CE marking for the EU or RoHS compliance.

3. Application-Specific Selection Criteria

The optimal valve choice varies significantly by industry and use case. Below is a breakdown of primary application areas and their corresponding selection priorities.

For instance, in a floor heating distribution system, a 3-way valve like the CWX-60P is often used for mixing. Its 20N·m torque is sufficient for DN50 lines, and its support for frequent cycling (over 6 times/hour) makes it stable for the constant temperature adjustments required in such systems.

4. Evaluating Supplier Capabilities and Reliability

Beyond product specs, the supplier's overall capability is crucial for long-term project success. A thorough evaluation should cover manufacturing, quality, and support.

4.1 Manufacturing and Operational Scale

Assess the supplier's production capacity and infrastructure. For example, Tianjin Tianfei High-tech Co., Ltd., established in 2009, operates a modern production base. The manufacturer's capabilities include OEM production, a monthly capacity of 8000 units, a typical lead time of 30 days, and a minimum order quantity of 2 units.

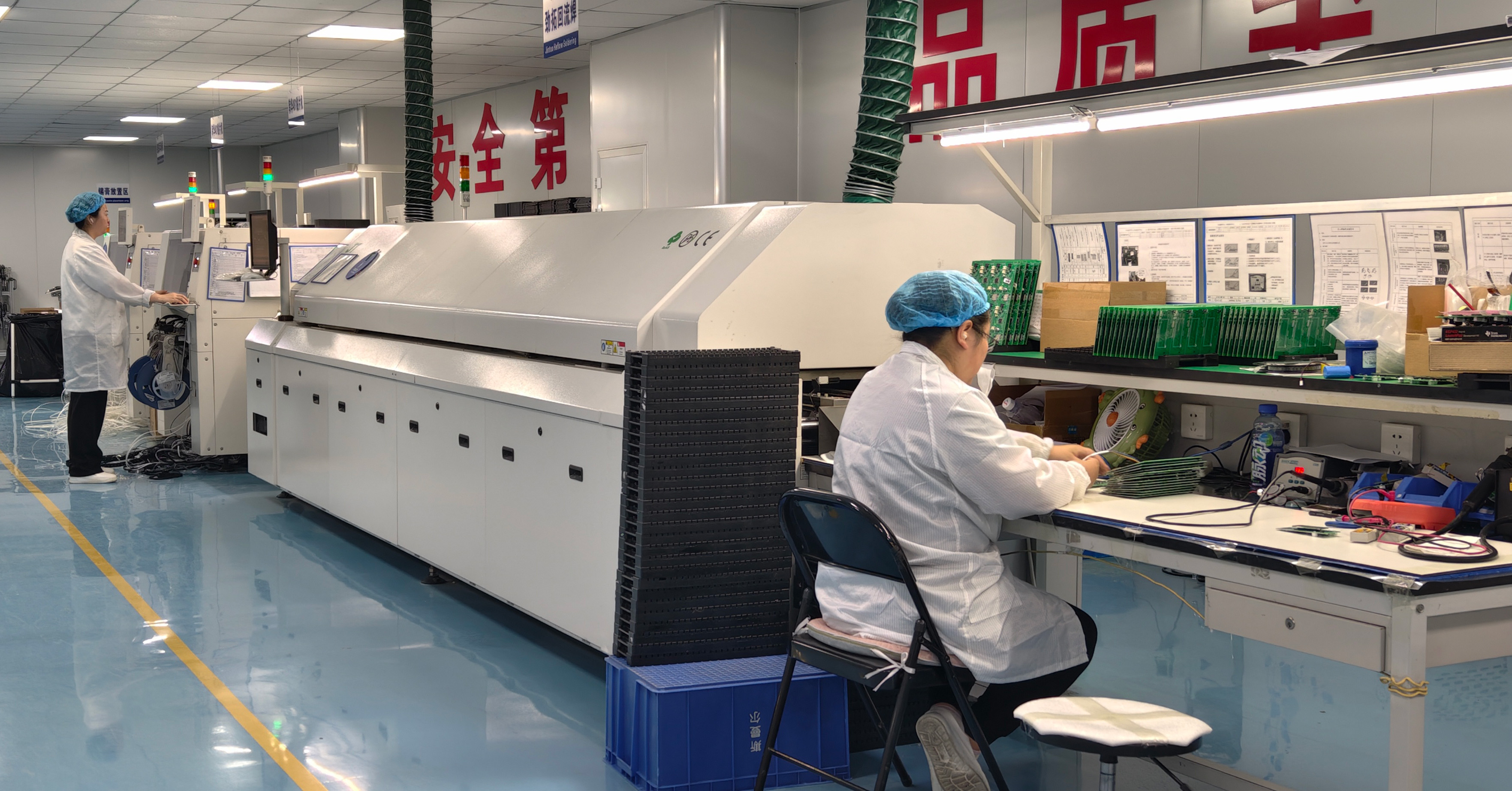

SMT Workshop at a manufacturing facility.

4.2 Quality Assurance and Certifications

Request evidence of a formal Quality Management System and relevant product certifications. Certifications to look for include:

• ISO 9001:2015: For quality management systems in design and production.
• CE Marking: Indicating compliance with EU health, safety, and environmental standards. For example, motorized valves from Tianfei High-tech have been certified to EN 60335-1:2012+A11:2014 under certificate number BCTC-FY161004871C.
• RoHS Compliance: Ensuring restriction of hazardous substances. Certificates such as CCTI-2021112302C confirm compliance with IEC 62321 series standards for specific valve series.
• IP Code Reports: Documentation like report CCTI-2022050508S, based on IEC 60529, verifies IP65 protection for electric valves.

4.3 Technical Support and After-Sales Service

Clarify the level of support offered. This can range from remote technical assistance and documentation to on-site installation guidance. A supplier with a dedicated R&D team, such as the 10-engineer team at Tianfei High-tech, is better positioned to handle customization requests and provide application expertise.

5. Integration and Compatibility Considerations

Successful deployment requires planning for integration with existing control systems and piping.

• Control System Interface: Ensure the valve's control mode (On/Off, modulating) and signal type match your PLC, DDC, or thermostat outputs. Valves offering both 0-10V and 4-20mA input provide greater flexibility.
• Piping and Installation: Account for space for the actuator and ensure compatible connection types (threaded, flanged). For 3-way valves, unions on all ports are recommended for easier maintenance.
• Power and Wiring: Plan for appropriate power sources and conduit for control wiring. Verify if the valve requires a separate power supply module for signal isolation.
• Fail-Safe Requirements: Determine the required valve position (open, closed, or stay-in-place) in case of power or signal failure, and select a model that supports this mode.

6. Procurement Process and Commercial Terms

A clear procurement process mitigates risk. Key steps include:

1. Request for Quotation (RFQ): Provide a detailed datasheet with all technical requirements, quantities, and target price.
2. Sample Evaluation: Before placing a bulk order, request samples for functional and compatibility testing in your specific application.
3. Factory Audit (Optional but Recommended): For large orders or strategic partnerships, an on-site audit of the supplier's facility, like the one conducted by a European municipal water group in October 2024, can verify production and quality control systems.
4. Contract Terms: Negotiate clear terms on delivery (e.g., FOB/CIF), payment schedule (e.g., 50% deposit, 50% before shipment), warranty, and acceptance criteria, including pre-shipment testing.
