Name: Dalian Yinlu Electrical Control Equipment Manufacturer
Address: China

Sobre Dalian Yinlu Electrical Control Equipment Manufacturer

Dalian Yinlu Electrical Control Equipment Manufacturer established in 1994, is a professional company engaged in the research, development, sale and service of sheet metal fabrication, enclosure, electrical control cabinet, intelligent control box and electrical distribution. We are located in Dalian, Liaoning Province China with convenient transportation access. Combining traditional techniques with advanced manufacturing equipment, we always offer customers good products. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained ISO 9001. Due to perfect design, reasonable price and high quality, our products are popular in both domestic market and overseas region such as America, Australia, Japan Mongolia etc. Our products are widely applied in a variety of industries such as electric power industry, petroleum industry, chemical industry, food industry, public traffic industry military industry etc. We also welcome OEM and ODM orders. Our value is “Never stop to do a little better”, which contributes to our continuous improvement. We welcome customers from all over the world to contact us to create more values for the human beings. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

Nossos produtos

Ver todos os produtos → →

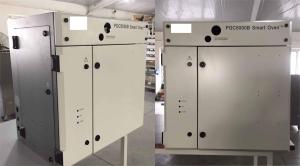

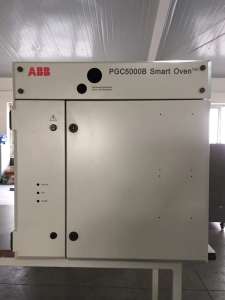

ABB PGC5000 Series Gas Chromatogragh Enclosure

Model: YL0911
Params: Rated Voltage:24 V, 48 V, 120 V, 240 V, Low Voltage
Rated Current: 20A, 12 A, 30 A
Application:Industrial, Outdoor, Electric Power Transmission
IP Level: IP65
Number of Sockets: 24
Lock Type: Tamper-Resistant Lock
Material:CRS,Stainless steel,Aluminum,Carbon steel
Color:RAL7035
Surface treatment:Powder Coating Spray

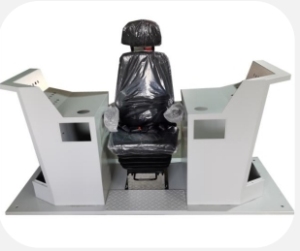

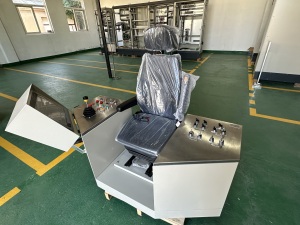

Mobile Industrial Control & Equipment Mounting Base

Model: customizable
Params: Surface Treatment:
Cold-rolled steel: Electrostatic powder coating (customizable colors, default RAL7035 light gray)
Stainless steel: Brushed/polished finish, corrosion-resistant and anti-fingerprint
Seal: EPDM rubber seal for dust and water protectionStandard Dimensions (Customizable):
Console main body (W×H×D): 800–1200mm × 1100–1500mm × 600–800mm
Seat height adjustment range: 400–550mm
Control panel height: 850–1050mm (ergonomic design)
Customization Range:
Any size can be customized according to customer equipment cab space, operation habits, and component quantity
Split-type / integrated structure design is supported
Enclosure Color:
Standard colors: RAL7035 (light gray), RAL7021 (dark gray)
Custom colors: Customizable per customer-provided color code (e.g., RAL5017 blue, RAL6018 green, etc.)
Control Panel Color:
Stainless steel natural color / black engineering plastic
Seat Color:Black, dark gray (default), other colors customizable
Ingress Protection (IP) Rating:IP54 / IP55 (panel & enclosure)
Operating Temperature:-10℃ ~ +60℃ (-40℃ ~ +85℃ customizable)
Relative Humidity: 5% ~ 95% (non-condensing)
Vibration Resistance:Compliant with GB/T 13306 / IEC 60068-2-6
Electromagnetic Interference (EMI) Resistance / EMC Performance:Compliant with GB/T 17626 / IEC 61000-4
Supply Voltage:AC220V / AC380V (DC24V optional)
Mechanical Life:Buttons/joysticks ≥1,000,000 cycles
MTBF: ≥10,000 hours
Control Components: Joysticks (single/multi-axis), push buttons (momentary/latching), indicator lights, meters, touch screens (HMI), emergency stop buttons
Control Modules: PLC (Siemens/Mitsubishi/Omron, etc.), relays, terminal blocks, power supply modules
Safety Functions: Emergency stop, fault alarm, safety interlock, overload protection
Optional Accessories: Armrest box, cup holder, storage box, communication interface, data acquisition module
Service Life: 10–15 years under normal conditions; 8–12 years under harsh conditions

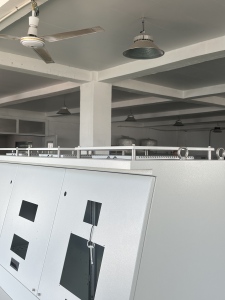

Control Room Console

Model: customizable
Params: Thickness：2.0mm
Surface Treatment：Phosphating derusting + electrostatic powder coating Color: RAL7035 （light gray/white）, scratch-resistant, oil-resistant, easy to clean
Protection Level：IP54 (dustproof, splash-proof, suitable for workshop/test room environment)
Installation Method：Floor-standing, with adjustable feet for precise leveling; some models with casters for mobility
Structure Design：Upper section: sloped operation area (15°~30° angle, ergonomic); lower section: equipment compartment/drawers/doors for industrial PCs, power supplies, test instruments
Door/Drawer：Lower section with single/double doors/drawers, with plane/handle locks for equipment maintenance and storage
Cable Management：Built-in strong/weak current cable ducts, cable holes at bottom/back, cable routing space behind sloped panel to avoid clutter
Size:Customized size/structure per sloped cutout layout, equipment size, and operation needs
Ambient Temperature:0℃ ~ +50℃ (adapt to workshop/test room environment)
Flame Retardancy:Cabinet materials comply with V-0 flame retardant standard for electrical safety
Grounding Requirement:Reliable cabinet grounding, grounding resistance ≤4Ω
Panel Functions:Custom cutouts on sloped panel: instrument windows, button holes, indicator holes, display mounting holes, test interfaces, etc.
Heat Dissipation:Heat dissipation holes/louvers on side/bottom of equipment compartment, optional axial fans for internal cooling
Optional Accessories:Drawers, doors, keyboard tray, mouse tray, display bracket, cable ducts, lighting, locks, PDU power sockets

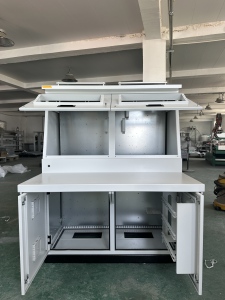

Sloped Industrial Control Console

Model: customizable
Params: Thickness：2.0mm
Surface Treatment：Phosphating derusting + electrostatic powder coating Color: RAL7035 （light gray/white), scratch-resistant, oil-resistant, easy to clean
Protection Level：IP54 (dustproof, splash-proof, suitable for workshop/test room environment)
Installation Method：Floor-standing, with adjustable feet for precise leveling; some models with casters for mobility
Structure Design：Upper section: sloped operation area (15°~30° angle, ergonomic); lower section: equipment compartment/drawers/doors for industrial PCs, power supplies, test instruments
Door/Drawer：Lower section with single/double doors/drawers, with plane/handle locks for equipment maintenance and storage
Cable Management：Built-in strong/weak current cable ducts, cable holes at bottom/back, cable routing space behind sloped panel to avoid clutter
Size:Customized size/structure per sloped cutout layout, equipment size, and operation needs
Ambient Temperature:0℃ ~ +50℃ (adapt to workshop/test room environment)
Flame Retardancy:Cabinet materials comply with V-0 flame retardant standard for electrical safety
Grounding Requirement:Reliable cabinet grounding, grounding resistance ≤4Ω
Panel Functions:Custom cutouts on sloped panel: instrument windows, button holes, indicator holes, display mounting holes, test interfaces, etc.
Heat Dissipation:Heat dissipation holes/louvers on side/bottom of equipment compartment, optional axial fans for internal cooling
Optional Accessories:Drawers, doors, keyboard tray, mouse tray, display bracket, cable ducts, lighting, locks, PDU power sockets

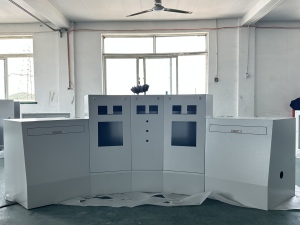

PLC control console

Model: customizable
Params: Material：Cold-rolled steel (SPCC)
Thickness:3.0mm
Surface Treatment:Phosphating derusting + electrostatic powder coating
Color: RAL7035 light gray/white, customizable two-tone), scratch-resistant, anti-fingerprint

Protection Level:IP54 (dustproof, splash-proof, suitable for command center/equipment room)
Installation Method:Floor-standing, with adjustable feet for precise leveling; supports seamless curved/corner splicing to form circular/linear dispatch consoles
Structure Design: Upper section: sloped operation area (ergonomic for multi-screen viewing); lower section: multi-door equipment compartment with removable back panel for maintenance
Door Structure:Single/double/multi-door design with plane/handle locks, side/lower louvered vents for internal ventilation
Cable Management:Built-in separate strong/weak current cable ducts, pre-drilled cable holes and ducts at bottom/back/top for organized cable routing
Customized Size:Customizable radian, size and splicing mode per display quantity, workstation count and space layout
Ambient Temperature: 0℃ ~ +45℃ (adapt to command center AC environment)
Relative Humidity:≤85% (no condensation)
Altitude:≤2000m
Vibration Resistance:Compliant with GB/T 13384, suitable for slight vibration during equipment operation
Flame Retardancy:Countertop and cabinet materials comply with V-0 flame retardant standard for fire safety
Panel Functions:Upper sloped section integratable: multi-display screens, touch screens, meters, buttons, indicators, dispatch phones, etc.
Heat Dissipation:Louvered vents on doors, optional axial fans for stable internal equipment operation

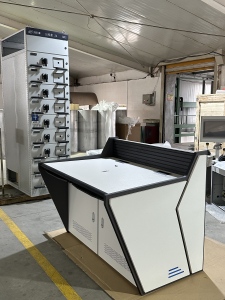

Modern Dispatch Console / Monitoring Console

Model: customizable
Params: Thickness：2.0mm;
Color:customizable
Surface Treatment :Two-tone design: black powder coating for frame, white powder coating
Protection Level:IP54 (dustproof, splash-proof, suitable for control room/equipment room)
Installation Method:Floor-standing, with adjustable feet/casters (optional) for leveling and mobility
Structure Design:Upper section: sloped operation area (ergonomic for screen viewing); lower section: double-door equipment compartment with removable back panel
Door/Drawer:Double doors with plane/handle locks, lower door panels with heat dissipation louvers for internal ventilation
Cable Management: Built-in separate strong/weak current cable ducts, cable holes at bottom/back, top cable duct for easy cable routing and maintenance
Size:Customized. Customizable size/structure per display quantity, instrument layout, operation needs
Ambient Temperature:0℃ ~ +45℃(adapt to control room AC environment)
Relative Humidity :≤85% (no condensation)
Altitude:≤2000m
Vibration Resistance:Compliant with GB/T 13384, suitable for slight vibration during equipment operation
Flame Retardancy:Countertop and cabinet materials comply with V-0 flame retardant standard for fire safety
Grounding Requirement:Reliable cabinet grounding, grounding resistance ≤4Ω
Panel Functions:Upper section integratable: displays, meters, buttons, indicators, touch screens, switches, etc.
Heat Dissipation: Heat dissipation holes reserved on side/back of equipment compartment, optional axial fans for internal cooling
Optional Accessories:Drawers, doors, keyboard tray, mouse tray, display bracket, cable ducts, lighting, locks
Internal Components:Industrial displays, PLC, touch screens, meters, buttons, indicators, switches, power modules

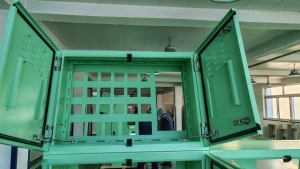

Industrial Monitoring Console

Model: customizable
Params: Thickness：2.0mm;
Color:customizable
Surface Treatment ：Phosphating derusting + electrostatic powder coating (color: RAL7035 light gray/custom), scratch-resistant, anti-fingerprint
Protection Level:IP54 (dustproof, splash-proof, suitable for control room/equipment room)
Installation Method:Floor-standing, with adjustable feet/casters (optional) for leveling and mobility
Structure Design:Modular/integrated structure: upper section for monitoring/instruments, lower section for storage/equipment compartment (with doors/drawers), expandable by multiple consoles
Door/Drawer:Lower section with single/double doors or multi-layer drawers, with locks for equipment maintenance and storage
Cable Management:Built-in strong/weak current cable ducts, cable holes at bottom/back for separate cable routing
Size:Customized. Customizable size/structure per display quantity, instrument layout, operation needs
Ambient Temperature:0℃ ~ +45℃(adapt to control room AC environment)
Relative Humidity :≤85% (no condensation)
Altitude:≤2000m
Vibration Resistance:Compliant with GB/T 13384, suitable for slight vibration during equipment operation
Flame Retardancy:Countertop and cabinet materials comply with V-0 flame retardant standard for fire safety
Grounding Requirement:Reliable cabinet grounding, grounding resistance ≤4Ω
Panel Functions:Upper section integratable: displays, meters, buttons, indicators, touch screens, switches, etc.
Heat Dissipation: Heat dissipation holes reserved on side/back of equipment compartment, optional axial fans for internal cooling
Optional Accessories:Drawers, doors, keyboard tray, mouse tray, display bracket, cable ducts, lighting, locks
Internal Components:Industrial displays, PLC, touch screens, meters, buttons, indicators, switches, power modules

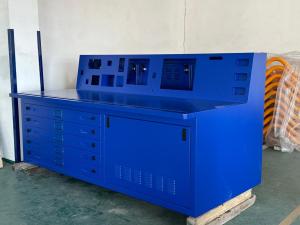

Center Console

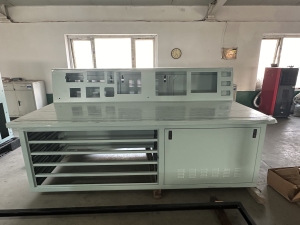

Industrial Operator Console

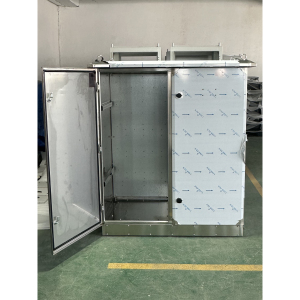

Stainless Steel Junction Box / Maintenance Box

Model: customizable
Params: Thickness:2.0mm
Surface Treatment:Brushed finish
Protection Level:IP65(dustproof, rainproof/water immersion, suitable for outdoor/submerged/cleanroom scenarios)

Installation Method: floor-standing
Door Structure: double door, with stainless steel plane lock/handle lock (with keys), EPDM rubber seal, grounding jumper between door and cabinet
Internal Configuration:Built-in mounting plate/DIN rail, terminal blocks, grounding bar; compartment design optional for strong/weak current isolation

Cable Entry/Exit: Knockout holes at bottom/side/back, with waterproof cable glands (PG/M type), supports various cable sizes
Size: Customizable per cable quantity, terminal specs, on-site installation space
Corrosion Resistance: 304 resists atmospheric/fresh water corrosion; 316 resists salt spray/acid corrosion (coastal/chemical scenarios)
Protection Functions: Optional: overload protection, short-circuit protection, surge protection, insulation monitoring
Grounding Requirement： Reliable cabinet grounding, grounding resistance ≤4Ω; equipotential bonding between door and cabinet

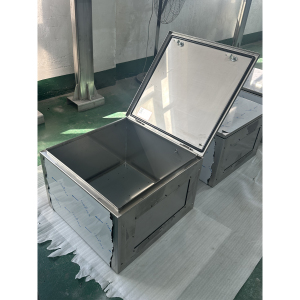

Multi-meter Cupboard

Model: customizable
Params: Thickness:2.0mm
Surface Treatment:Brushed finish
Protection Level:IP55
Installation Method: Wall-mounted, 4 pre-drilled mounting holes on back, fixed to wall/equipment with expansion screws/brackets
Door Structure: Single/double door, with stainless steel plane lock/handle lock (with keys), EPDM rubber seal, grounding jumper between door and cabinet
Internal Configuration:Built-in mounting plate/DIN rail, reserved instrument holes; with grounding bar for electrical connection
Cable Entry/Exit: Knockout holes at bottom/side, with waterproof cable glands for cable entry/exit
Size: Customizable per instrument size/cutout layout/depth
Corrosion Resistance: 304 resists atmospheric/fresh water corrosion; 316 resists salt spray/acid corrosion (coastal/chemical scenarios)
Panel Functions: Custom cutouts: instrument window, button/indicator holes, meter mounting holes, sensor ports

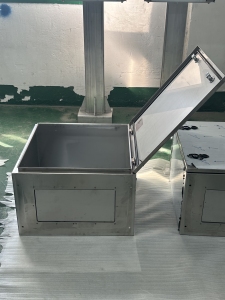

Wall-mounted Instrument Box

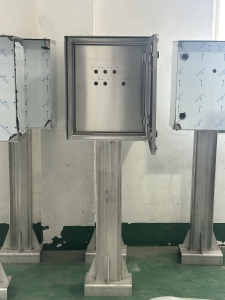

Stainless Steel Pedestal box

Model: customizable
Params: Thickness:2.0mm; Pedestal: stainless steel square/round tube, thickness ≥2.0mm
Surface Treatment: Brushed finish
Protection Level: IP55/IP65 (dustproof, rainproof jet, suitable for outdoor/humid environments)
Installation Method: Pedestal floor-mounted, flange base fixed with expansion bolts; height customizable
Internal Configuration: Built-in mounting plate/rails, reserved instrument holes; with grounding bar for electrical connection
Cable Entry/Exit:Knockout holes at bottom/pedestal side, with waterproof cable glands for cable entry
Panel Functions: Custom cutouts: instrument window, button/indicator holes, meter mounting holes

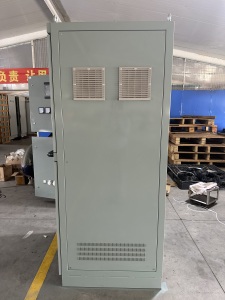

Airport Ground Power Control Cabinet / Aviation Maintenance Distribution Box

Model: customizable
Params: Thickness 3.0mm
Surface Treatment:Phosphating derusting + electrostatic powder coating
Protection Level: IP55
Installation Method:Floor-standing,movable version with casters for ground crew handling
Internal Configuration:Compartment design: power, control, maintenance; built-in DIN rails, copper busbars, terminal blocks, grounding bar, compatible with aviation sockets & protection devices
Cable Entry/Exit: Pre-drilled cable holes at bottom/back, with waterproof cable glands, supports high-current power cables
Customized size:Customizable size & compartment layout per airport apron/power needs
Ambient Temperature:-20℃ ~ +60℃ (adapt to extreme airport temperature; heater optional for northern airports)
Relative Humidity:≤95%
Altitude: ≤4000m (covers high-altitude airports)
Vibration Resistance: Compliant with aviation vibration standards, resistant to aircraft takeoff/landing & ground vehicle vibration
Corrosion Resistance: Resistant to aviation fuel, hydraulic oil, salt spray (304 stainless steel optional for coastal airports)
Rated Voltage:AC 220V/380V/400V (3-phase 5-wire), DC 28V (aircraft-specific DC power)
Rated Frequency: 50Hz/60Hz
Rated Current: 16A / 32A / 63A / 125A (depends on aviation socket specs)
Socket Configuration:Integrates aviation-specific sockets (28V DC/115V 400Hz), industrial sockets (IEC 60309), maintenance sockets for aircraft & ground support equipment
Grounding Requirement: Reliable cabinet grounding, grounding resistance ≤4Ω; equipped with equipotential terminals to ensure consistent potential between aircraft & ground
Optional Accessories:Aviation sockets, E-stop buttons, indicators, insulation monitors, 400Hz modules, casters/push handles

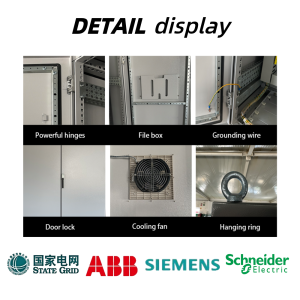

Low-voltage Switchgear / Power Distribution Cabinet

Model: customizable
Params: Thickness: 2.5mm
Surface Treatment:Phosphating + electrostatic powder coating
Color: RAL7035 light gray
Protection: IP55
Installation: Fixed by foot bolts on concrete floor (C20 standard)
Door Structure: Double doors with heavy-duty hinges and MS lever locks; EPDM rubber seal for high tightness
Cooling Design: Back/side heat dissipation louvers; optional industrial axial fans with filter mesh to prevent dust ingress
Lifting Design: Lifting eyes reserved on top for easy factory lifting and on-site handling
Temp: -5℃ ~ +55℃ (adapt to high temperature in Kenya, max 45℃)
RH: ≤95% (no condensation, anti-condensation design)
Altitude: ≤2000m (covers most areas of Kenya)
UV Resistance: UV-resistant coating, suitable for outdoor exposure
Vibration: Complies with GB/T 13384, resistant to transport vibration
Voltage: AC 400V / 415V / 440V (3-phase 5-wire system)
Frequency: 50Hz
Current: 630A / 800A / 1250A (depends on configuration)
Breaking: 50kA / 65kA
Busbar: T2 copper busbar with tin plating, anti-oxidation
Protection: Overload, short-circuit, leakage protection (RCD/RCBO optional), complies with IEC 60439
Brand: Compatible with mainstream brands like ABB, Schneider, Siemens in Kenya

Gym Smart Equipment Control Box

Model: customizable
Params: Thickness:2.0mm
Surface Treatment: Phosphating derusting + electrostatic powder coating
Protection Level:IP54
Installation Method: Wall-mounted
Door Structure: Single door, with plane lock/password lock (optional), EPDM seal on door frame, internal heat dissipation louver
Internal Configuration: Installable: Built-in DIN rails, terminal blocks, grounding bar, MCB/RCD modules; integratable with relays, PLC, smart control modules
Cable Entry/Exit: Pre-drilled cable holes at bottom/back, with waterproof cable glands, convenient for separate strong/weak current wiring
Rated Voltage: AC 220V
Rated Current: 16A / 32A / 63A (depends on total power of gym equipment)
Protection Functions: Built-in overload protection, short-circuit protection, leakage protection; optional over/under voltage protection to prevent equipment damage
Smart Control Functions: Integratable: timer switch, remote control (WiFi/4G), equipment linkage, energy consumption monitoring
Grounding Requirement: Reliable cabinet grounding, grounding resistance ≤4Ω, ensure gym electrical safety
Optional Accessories: Cooling fans, smart control modules, remote monitoring modules, indicators, labels
Controlled Equipment:Treadmills, elliptical machines, strength equipment, lighting, air conditioners, access control, smart mirrors, etc.
Installation Accessories: Expansion screws, wall brackets, cable glands, cable ducts, cable ties, labels

Custom Wall-mounted Electrical Control Box / Local Operation Box

Model: customizable
Params: Plate thickness: 2.0mm
Surface Treatment: Brushed finish
Protection Grade:IP65
Installation Method:Floor-mounted
Door Structure:Double-door design, equipped with stainless steel handle lock (with keys). Door frame fitted with EPDM (Ethylene Propylene Diene Monomer) sealing strip. Reliable grounding bonding between door and cabinet body. Some models feature a bottom ventilation louver.
Internal Configuration: Built-in 19-inch mounting rails / uprights, compatible with communication equipment, energy storage batteries, PLC, frequency converters, etc.; internal grounding bar included, with reserved space for lighting / cable routing at the top.
Cable Entry/Exit Method: Pre-drilled knockout holes at the bottom / back, configurable with stainless steel waterproof cable glands. Reserved cable / pipe penetration interface at the top.
Weather Resistance: UV-resistant, anti-aging, and acid rain-proof, suitable for long-term outdoor exposure to sunlight, rain, and snow.

Stainless Steel Distribution Box / PLC Control Cabinet

VFD Control Cabinet

Model: customizable
Params: Thickness 2.0mm
Surface Treatment: Phosphating derusting + electrostatic powder coating
Color: RAL7035 (light gray)
Protection Level：IP54/IP55 (indoor), IP65 (outdoor/waterproof & dustproof scenarios)，optional
Installation Method: Floor-standing
Door Structure:Single/double door, with stainless steel handle lock, EPDM rubber seal on door frame; observation window/heat dissipation louver optional for some models
Internal Configuration: Installable: DIN rails, mounting plates, 19-inch racks, PLC, VFD, circuit breakers, relays, terminal blocks, power modules, grounding bars
Cable Entry/Exit: Knockout holes at bottom/back, with waterproof cable glands
Model: Custom: Customizable size according to component layout and heat dissipation requirements, depth range 500~800mm
Ambient Temperature:10℃ ~ +55℃
Relative Humidity: ≤95% (no condensation; heater/dehumidifier required for condensation environments)
Altitude: ≤2000m
Vibration Resistance: Compliant with GB/T 13384, suitable for slight vibration environments during workshop equipment operation
EMC: Good electromagnetic shielding performance, resistant to electromagnetic interference in industrial sites
Rated Voltage: Compatible with AC 220V/380V, DC 24V/48V industrial control systems
Rated Current: Depends on internal components, maximum support for 630A circuits
Grounding Requirement: Reliable grounding of cabinet, grounding resistance ≤4Ω
Heat Dissipation Solution: Optional: Axial fan + filter, heat exchanger, industrial air conditioner
Optional Accessories: Observation window, lighting, keyboard drawer, casters/feet, grounding bar, cable gland, dust filter, temperature control module
Installation Accessories: Adjustable feet/casters, DIN rails, cable ducts, cable ties, labels

Industrial Socket Box also called Waterproof inspection boxes, on-site temporary power distribution boxes, and multi-functional power boxes

Model: customizable
Params: Plate thickness:3.0mm
Surface Treatment:Phosphating + electrostatic powder coating
Protection Grade: Optional IP44/IP55/IP67 (dustproof, water jet resistant / heavy rain resistant; outdoor version can reach IP67).
Installation Method: Wall-mounted
Door Structure: Single-door design, with lock catch. Some models feature a transparent observation window; door frame fitted with waterproof sealing strip.
Internal Configuration: Built-in miniature circuit breakers, residual current protectors, terminal blocks, busbars; panel integrated with industrial sockets (16A/32A/63A), switches and indicator lights.
Cable Entry/Exit Method: Pre-reserved cable glands (cable connectors) or waterproof cable glands at the bottom / side, for convenient cable introduction and extraction.
Rated Voltage: AC 220V/380V (single-phase / three-phase optional)
Rated Current: 16A / 32A / 63A (depends on socket configuration)
Protection Functions: Built-in overload protection, short-circuit protection, and optional residual current protection; some models also feature overvoltage / undervoltage protection.
Socket Type: Industrial plugs and sockets (compliant with IEC 60309 standard):
- 16A/32A 3P+N+PE (three-phase)
- 16A 2P+E (single-phase)
- Color-coded voltage levels: Blue (230V), Red (400V)
Earthing Requirement: The cabinet must be reliably earthed, with an earth resistance ≤4Ω.
Optional Accessories: Waterproof cable glands, transparent observation window, indicator lights, switches, handles, and padlocks.

stainless steel non-standard custom enclosure

Stainless Steel Double-Door Outdoor Communication / Energy Storage Cabinet

Stainless Steel Double-Door Outdoor Cabinet

Model: customizable
Params: Plate thickness: 1.5mm
Surface Treatment:Brushed finish
Protection Grade: IP65
Installation Method: Floor-mounted
Door Structure: Double-door design, equipped with stainless steel handle lock (with keys). Door frame fitted with EPDM (Ethylene Propylene Diene Monomer) sealing strip. Reliable grounding bonding between door and cabinet body.
Internal Configuration:Compatible with 19-inch rack, shelves, mounting plates, suitable for communication equipment, energy storage batteries, PLC, frequency converters, etc.; internal grounding bar included.
Cable Entry/Exit Method: Pre-drilled knockout holes at the bottom / back, configurable with stainless steel waterproof cable glands.
Weather Resistance: UV-resistant, anti-aging, and acid rain-proof, suitable for long-term outdoor exposure to sunlight, rain, and snow.
Ambient Temperature: -20℃ ~ +60℃ (extendable to -40℃ ~ +80℃ for 316 grade version)
Relative Humidity: ≤95% (non-condensing; heater/dehumidifier can be added for condensing environments)

plc electrical enclosure

Model: customizable
Params: Thickness:2.0mm
Surface Treatment: Phosphating rust removal + electrostatic powder coating.
Color: RAL7035
Protection Grade: IP54
Installation Method: Floor-mounted (with adjustable feet / casters at the bottom), can be directly placed on workshop floors.
Door Structure:Single-door design, equipped with stainless steel handle lock. Door frame fitted with EPDM (Ethylene Propylene Diene Monomer) sealing strip. Some models feature a transparent observation window (tempered glass / PC panel) or ventilation louver for heat dissipation.
Internal Configuration: Compatible with: 19-inch rack, industrial PC, HMI touch screen, PLC, switch, power module, terminal blocks, DIN rail, shelves / pallets. Some models are equipped with a top operation window (for installing display / keyboard).
Cable Entry/Exit Method: Knockout holes at the bottom / back, configurable with waterproof cable glands (cable connectors) for easy access of power / signal cables.

Customized Wall-Mounted Electrical Control Box

Model: Customizable
Params: Thickness:1.5mm
Surface Treatment: Phosphating treatment + electrostatic powder coating.
Protection Grade:IP54 / IP55 customizable
Installation Method: Recessed flush mounting (pre-embedded in wall) or surface wall mounting (depending on on-site wall structure). Sturdy mounting holes are provided at the bottom / back.
Door Structure: Single door, equipped with a dedicated flat lock.The door frame is embedded with EPDM (Ethylene Propylene Diene Monomer) rubber sealing strip to ensure sealing performance.
Internal Configuration: Integrated mounting plate. Separate terminal and component installation areas are reserved inside. DIN rails are usually not included (can be added according to customer component requirements). An internal grounding copper bar is provided.
Cable Entry/Exit Method:Multi-size knockout holes are provided at the bottom / left / right (see features 809/814 in the picture), compatible with power or control cables of different diameters. Waterproof cable connectors are available.

Small Customized Electrical Control Box (also known as Local Operation Box / On-site Equipment Control Box / PLC Control Box)

Model: Customizable
Params: Plate thickness: 2.1mm
Surface Treatment:Brushed finish, easy to clean and corrosion resistant.
Protection Grade: IP55 (dustproof and splash-proof, suitable for workshop sites); upgradeable to IP65 for outdoor scenarios.
Installation Method: Wall-mounted / Equipment side-mounted (with back mounting holes), or floor-standing.
Door Structure:Single-door design, equipped with stainless steel flat lock
Internal Configuration: Internal mounting plate / DIN rail. Compatible with PLC, relays, terminals, circuit breakers, drive modules, etc. Equipped with a grounding bar for electrical safety.
Cable Entry/Exit Method: Knockout holes at the bottom / back, configurable with cable glands (waterproof connectors).

Rittal-style Free-standing Outdoor Control Cabinet

Model: Customizable
Params: Thickness:2.0mm
Surface Treatment:Phosphating rust removal + electrostatic powder coating
Protection Grade:IP55/IP65 (completely dustproof and resistant to heavy rain jetting, suitable for outdoor exposed / semi-outdoor environments)
Installation Method:Floor-mounted can be directly placed on outdoor ground
Door Structure: Single-door design, equipped with stainless steel handle lock
Internal Configuration: Internal mounting rails/ducts, laminates/mounting plates, compatible with 19-inch equipment, PLC, frequency converters, terminals, etc.; some models are equipped with internal uprights for easy adjustment of installation space
Cable Entry/Exit Method: Pre-drilled knockout holes at the bottom / back, can be equipped with waterproof cable glands (cable entry devices)

Canadian White Cabinet (Outdoor Communication Cabinet / Energy Storage Cabinet / Electrical Equipment Protection Cabinet)

Model: Customizable
Params: Plate thickness 1.5mm~2.0mm; 2.0mm steel plate for frame reinforcement
Surface Treatment:Phosphating rust removal + electrostatic powder coating (outdoor weather-resistant powder).
Colors: Canadian White (RAL9016) / Dark Green (RAL6005), other colors customizable; fluorocarbon coating upgrade available for outdoor models
Protection Grade:IP65 (dustproof and resistant to heavy rain jetting, suitable for outdoor exposed environments)
Installation Method:Floor-mounted (fixed with bottom pillars/feet), can be directly installed on outdoor ground, roof or platform
Door Structure:Double-door design, equipped with stainless steel hasp lock / flat lock. Door frame with EPDM (Ethylene Propylene Diene Monomer) sealing strip. Some models come with observation window / access door
Internal Configuration:Insulation layer: Polyurethane (PU) foam, thickness 50~100mm, for thermal insulation. 19-inch rack, laminates and mounting plates can be installed inside, compatible with communication equipment, energy storage batteries and electrical components
Cable Entry/Exit Method:Pre-drilled knockout holes at the bottom / back, can be equipped with waterproof cable glands (cable entry devices)
Ambient Temperature:-40℃ ~ +60℃ (suitable for North American high-cold and high-temperature regions)
Relative Humidity: ≤95% (non-condensing; heater/dehumidifier can be added for condensing environments)
Altitude: ≤4000m
Weather Resistance: UV-resistant, anti-aging, and acid rain-proof. Suitable for long-term outdoor exposure to sunlight, rain, and snow.
Thermal Insulation Performance: Thermal conductivity ≤ 0.024 W/(m·K), effectively reducing internal temperature fluctuations to meet the insulation requirements of high-cold regions.
Wind & Earthquake Resistance: Complies with North American and international standards, capable of withstanding Category 12 typhoons and minor earthquakes.

Freeze Dryer Enclosure

Model: 260/440/470/570/570 max
Params: Extraction capacity:15-60KG
Drawer loading volume: 115-980 liters
Surface (8 trays): 2.8-3.85
Tray material: Anodized Aluminum or Stainless Steel
Cooling capacity: 1.5-3KW
Heating Capacity:up to 400 Watt/Tray
Current load: Max 6.5 KW-30KW
Condensation temperature: -40℃
Maximum vacuum: 10-50 Mtorr
Total weight: 310KG-1120KG
Size: customizable
Ambient Temperature: customizable

Stainless Steel Electrical Control Cabinet

Model: Customizable
Params: Surface Treatment：Main body: 304 stainless steel (standard version)
Plate thickness: ≥2.0mm
Protection Grade：IP54/IP55 (indoor use)
Installation Method：wall-mounted
Door Structure：Equipped with stainless steel flat lock / handle lock. Door frame with EPDM (Ethylene Propylene Diene Monomer) sealing strip. Some models come with observation window
Internal Configuration：Can be equipped with: DIN rails, mounting plates, laminates, grounding bars, cable ducts. Compatible with PLC, frequency converters, circuit breakers, terminals and other components.
Cable Entry/Exit Method：Knockout holes at the bottom / back, equipped with stainless steel cable glands (waterproof connectors)
Ambient Temperature：-20℃ ~ +60℃ (316 version can be extended to -40℃ ~ +80℃)
Relative Humidity：≤95% (non-condensing; heater/dehumidifier can be added for condensing environments)
Altitude：≤4000m
Corrosion Resistance：- 316 Stainless Steel: Resistant to strong acids, strong alkalis, salt spray, and seawater corrosion (suitable for coastal / chemical industry scenarios)
Vibration Resistance：Complies with GB/T 13384 standard, suitable for vibrating environments such as mines and ports
Rated Voltage：Compatible with AC 220V/380V and DC 24V/48V industrial control systems
Grounding Requirement：The cabinet must be reliably grounded, with a grounding resistance ≤ 4Ω
Heat Dissipation Solution：Optional: Axial fan + filter screen, heat exchanger, industrial air conditioner (configured according to internal heat generation)
Lock Type：Stainless steel flat lock / handle lock; padlock optional to prevent unauthorized operation
Accessory Options：Observation window, lighting lamp, keyboard drawer, casters / adjustable feet, grounding bar, cable gland, dust filter

Free Standing Modular Enclosure

Model: YL0923-3
Params: Thickness: ≥2.0mm
Surface Treatment: Phosphating for derusting + electrostatic powder coating
Color: RAL7035
Protection Rating: IP54/IP55
Installation Method: Floor-standing (with adjustable leveling feet/casters at the bottom), can be placed directly on the workshop floor.
Door Structure: Multi-compartment design:
Front door: Features a transparent viewing window (PC/tempered glass) for displaying HMI/screens.
Side/Rear doors: Used for installing electrical components and maintenance wiring.
Equipped with a mechanical lock (flush lock/handle lock) to prevent accidental operation.
Internal Configuration: Capable of housing: Industrial PC, HMI touchscreen, PLC, network switch, power module, terminal blocks, DIN rails, shelves/mounting plates.
Cable Entry/Exit: Knockout holes at the bottom/rear, compatible with cable glands for easy access of power/signal cables.

Port Crane Control Cabinet

Model: YL251009-1
Params: Protection Level:IP55 (double-seal + silicone rubber seal strip)
Salt Spray Resistance:1.5g (complies with GB/T 2423.10)
Service Life:≥15 years
Hole Tolerance:≤±0.5mm
Top Load-Bearing:≥50kg
Temperature Adaptation: Internal temp ≤52℃ (ambient 45℃)
Custom Size Range: 600*800*2200mm - 1200*1000*2500mm
Compatible Circuit Breaker Current: Max 6300A
Insulation Protection Level: Phase-to-phase insulation resistance ≥100MΩ

Outdoor Telecommunication Network Cabinet

Model: Network Cabinet
Params: Type:Network Cabinet
Certificate: CE, ISO9001/ISO14001
Air pressure: 62kpa~101kpa
Storage temperature: -50℃~+70℃
Noise Level: 60-65dB
Cooling: 1500W,AC220V Air conditioner+DC48V fans
Working temperature: -40℃~+55℃
Customized: Material/Logo/Size/Color/Accessories/Protection rating

Outdoor Weatherproof Control Enclosure

Model: Customizable
Params: Surface Treatment: FRP: Seamless molding, smooth and aging-resistant surface.
Stainless Steel: Brushed/Polished finish for enhanced corrosion resistance.
Protection Rating: IP66
Installation Method:Wall-mounted
Door Structure:Single door
Internal Configuration:Can be equipped with DIN rails, mounting plates, or shelves for installing terminals, instruments, circuit breakers, etc.
Cable Entry/Exit: Bottom/Back knockout holes, compatible with waterproof cable glands.
Commonly Matched Components:Terminal Blocks, Meters/Instruments, PLCs, Circuit Breakers, Sensors, Communication Modules
Installation Accessories: Expansion Screws, Wall-Mounting Brackets, Cable Glands, Grounding Busbars

hmi enclosure box

Model: Customizable
Params: Material:SPCC
Thickness: 2.1mm
Surface Treatment:hosphating + Electrostatic powder coating
Color: RAL7035 (Light Gray) / RAL7032 (Dark Gray)
Protection Rating:IP55
Installation Method:Recessed mounting (built into wall opening) / Surface wall mounting
Door Structure:Single door with mechanical lock (round lock / cam lock), bottom or side hinges
Internal Configuration:DIN rail at the bottom (for terminals/circuit breakers), Grounding terminal block (optional)
Cable Entry/Exit:Knockouts on side/bottom/rear (with waterproof cable glands or cord grips)
Dimensions: Customizable
Matching Components: Customizable Miniature Circuit Breaker (MCB); Terminal Blocks; Relays; Push Buttons / Indicator Lights; Small PLC; Meters/Instruments; Sensors
Installation Hardware: Customizable Expansion Screws; Mounting Brackets; Cable Glands; Wire Ducts; Cable Ties

Galeria da empresa

Main Entrance of the Factory

welding area

equipment

Certificações e prêmios

Verification of Conformity

ISO 9001:2015

Histórias de sucesso

Installer

It can effectively protect the precision components inside the freeze dryer, prevent damage caused by dust, water vapor and collision, ensure the stable operation of the freeze-drying equipment, improve the quality stability of freeze-dried products (food, medicine, scientific research samples, etc.), and reduce equipment failure rate and operation and maintenance costs; for our factory, by providing customers with high-quality products that meet their needs, we can consolidate cooperative relations, expand market share, improve production efficiency and brand influence, and achieve win-win results for both supply and demand parties.
1. High-quality and durable materials: Adopt cold-rolled steel plate/304 stainless steel (customizable), corrosion-resistant, moisture-proof and impact-resistant, suitable for various working conditions, which not only reduces customers' later maintenance costs, but also shows the production strength of our factory; 2. Customized adaptation: According to customers' freeze dryer size, installation scenario and protection needs, we can customize cutouts, structure and color to accurately match customers' equipment and improve the adaptability of our orders; 3. Exquisite and efficient craftsmanship: Factory standardized production, high precision and good sealing performance, shorten delivery cycle, which not only meets customers' demand for rapid commissioning, but also improves our production efficiency and reduces production costs; 4. Safety and compliance: In line with industrial equipment protection standards, excellent sealing performance, ensuring the safe operation of customers' e

📍 Localização: AT 📦 Quantity: 2000

PACRAFT

For customers, it can accurately adapt to customized equipment, fully protect internal precision components from external environmental interference, ensure long-term stable operation of equipment, improve equipment service life and operational safety, reduce the frequency of fault maintenance, reduce comprehensive operation and maintenance costs, and at the same time improve the overall aesthetics and professionalism of equipment; for our factory, by accurately docking customers' non-standard needs, giving play to the advantages of stainless steel processing and production, delivering high-quality products that meet customers' expectations, we can consolidate customer cooperative relations and improve the factory's non-standard customization capacity and market competitiveness.
1. High-quality material: Adopt 304/316 stainless steel, salt spray resistant, acid-base resistant, corrosion resistant and oxidation resistant, suitable for various harsh working conditions, with stable and reliable quality; 2. Non-standard customization: It can be fully customized according to customers' equipment size, hole position, installation method and protection needs, accurately matching customers' personalized needs and solving the problem of standard enclosure adaptation; 3. Exquisite craftsmanship: The factory has professional welding, polishing, bending equipment and technical team, with high product precision, good sealing performance and smooth appearance, in line with industrial equipment protection standards; 4. Safe and durable: The protection level can reach IP55-IP67 (customizable), effectively isolating dust and water vapor, and the structure is firm with strong impact resistance, ensuring the safe operation of equipment; 5. High cost performance: Factory direct s

📍 Localização: JP 📦 Quantity: 1000 units

GWM

For customers, it can quickly and accurately complete various tests of on-board electronic equipment, timely find equipment performance defects and potential faults, improve the factory pass rate of on-board electronic equipment, reduce product after-sales repair rate, save R&D and quality inspection costs, and enhance product market competitiveness; for our factory, by accurately docking customers' testing needs, giving play to the advantages of industrial testing equipment production, delivering high-quality test boxes that meet customers' expectations, we can consolidate customer cooperative relations, expand the market share of on-board electronic testing equipment, and improve the factory's R&D and production strength.
1. Multi-function integration: Compatible with testing of various on-board electronic equipment, covering multiple testing functions such as power-on, performance, aging and fault diagnosis, meeting customers' various testing needs in one stop without additional configuration of multiple testing equipment; 2. Simulate real working conditions: It can accurately simulate the actual on-board working environment such as on-board voltage, temperature and vibration, with accurate and reliable test data, providing scientific basis for customers' product optimization; 3. Easy operation: Equipped with a high-definition display interface and a simple operation panel, easy to get started without professional technical personnel, reducing customers' testing labor costs; 4. Reliable quality: Adopt industrial-grade components and high-strength protective enclosures, anti-interference, anti-collision, dustproof and waterproof, suitable for use in multiple scenarios such as workshops and laboratories,

📍 Localização: CN 📦 Quantity: 200

Panasonic

For Panasonic, the household automatic food machinery custom-developed by us accurately fits Panasonic's brand positioning and household market needs, can enrich its household kitchen appliance product line, improve product market coverage and user recognition, enhance the brand's competitiveness in the field of household food processing equipment, reduce product R&D and production costs, and realize the rapid launch of products; for our factory, relying on Panasonic's brand advantages and cooperative resources, we give play to the strength of custom development and production of household food machinery, deliver high-quality products that meet Panasonic's standards, consolidate long-term cooperative relations, improve the factory's R&D, production and customized service capabilities, and expand the market share of high-end household machinery.
1. Customized adaptation: Fully fit Panasonic's brand positioning and product standards, and can custom-develop exclusive household automatic food machinery according to Panasonic's product needs, appearance design and function positioning, realizing perfect integration of function, appearance and size with Panasonic's product line; 2. Food-grade safety: Adopt food-grade environmentally friendly raw materials and components throughout, no peculiar smell and no release of harmful substances, in line with national food machinery safety standards and Panasonic's strict quality requirements, ensuring the safety of end users; 3. Full automatic and convenient: Integrate multiple food processing functions, one-key start and automatic completion, simple operation, no professional operation skills required, suitable for all types of household users, and fit the convenient cooking needs of modern families; 4. Strict quality: Strictly follow Panasonic's quality control system, go through multiple

📍 Localização: JP 📦 Quantity: 100

Siemens OEM Consoles

For customers, it enables rapid equipment movement and flexible deployment, avoiding the limitations of fixed installation and improving production and testing efficiency; the side enclosures effectively protect internal electrical components, reduce failures and damage, and extend equipment service life; meanwhile, the modular structure facilitates equipment disassembly, assembly and upgrade, reducing overall operation and maintenance costs.
For our factory, by delivering stable and reliable customized mobile bases, we consolidate customer cooperative relations, enhance non-standard structural parts production capacity, expand market share in industrial mobile equipment, and achieve a win-win situation for both supply and demand partie
Convenient Mobility: Equipped with wear-resistant casters (with brakes), it can be easily moved to different workstations, while the brake function ensures stability during equipment operation.
Integrated Protection Design: Side enclosures provide dustproof and anti-collision protection for electrical components, with top openings for cable routing and heat dissipation, balancing protection and practicality.
Sturdy and Durable Structure: Made of high-strength steel plates by welding, with strong load-bearing capacity and electrostatic powder coating surface for rust and corrosion resistance, adapting to harsh industrial environments.
Customized Adaptation: The structure can be customized according to customers' equipment size, mounting holes, and enclosure opening requirements, accurately matching customers' equipment installation needs.
Modular Layout: The split design of the base and side enclosures facilitates transportation, installation and later maintenance, with reserved expansi

📍 Localização: DE 📦 Quantity: 100

ABB

For customers, this enclosure can accurately fit the ABB PGC5000 Series Gas Chromatographs, fully protecting internal precision components from environmental interference, stabilizing the instrument's analysis accuracy and data reliability, reducing equipment failure rates and downtime, extending the service life of the chromatograph, and improving the neatness and safety of on-site equipment. For our factory, by providing customized protection solutions for high-end analytical instruments, we consolidate cooperative relations with industry customers, enhance the production capacity of precision sheet metal and non-standard enclosures, expand the market share of supporting industrial analytical equipment, and achieve a win-win situation for both supply and demand parties.
Precise Adaptability: Fully matches the size, interface, and installation requirements of the ABB PGC5000 Series Gas Chromatographs, with reserved channels for gas paths, circuits, heat dissipation, and maintenance, enabling seamless integration between the equipment and the enclosure.
High-Grade Protection: Protection class can reach IP55/IP65 (customizable), effectively preventing dust, water, and corrosive gas penetration, adapting to harsh industrial site environments such as chemical and energy industries.
Material Durability: Optional 304/316 stainless steel (salt spray/acid-base corrosion resistant) or cold-rolled steel (electrostatic powder coating), with a wear-resistant and rust-proof surface that is not easily deformed or aged after long-term use.
Rational Structure: Modular partition design realizes physical isolation of gas paths, circuits, and analysis modules, avoiding signal interference, and facilitating later maintenance and component replacement.
Environmental Adapta

📍 Localização: CH 📦 Quantity: 200 Units

CRRC

For customers (Nagpur Metro operators and supporting suppliers), this control panel can accurately adapt to the subway operation needs, realize the centralized control of various subway systems, improve operation efficiency, reduce the incidence of equipment failures, ensure the safety of train operation and the travel experience of passengers, and reduce operation and maintenance costs and labor input. For our factory, by delivering customized subway control panels that meet project standards, we consolidate cooperative resources in the rail transit field, enhance the R&D and production capabilities of high-end electrical control equipment, expand the market share of international rail transit supporting equipment, and demonstrate the factory's technical strength and delivery capabilities.
1. Precise Project Adaptation: Fully customized according to the technical standards, size and interface requirements of the Nagpur Metro project in India, with reserved expansion interfaces to adapt to the control needs of various subway systems and achieve seamless connection; 2. High Safety Standards: Adopt fireproof, short-circuit proof and anti-electromagnetic interference design, in line with the safety specifications of rail transit electrical control equipment, ensuring subway operation safety; 3. Stable and Reliable: Industrial-grade component selection, sealing protection level up to IP55 and above, dustproof, waterproof and anti-interference, adapting to the complex underground working conditions of the subway; 4. Convenient Operation and Maintenance: Equipped with a high-definition display interface and fault alarm function, which can quickly diagnose faults and adjust parameters, reducing the difficulty and cost of operation and maintenance; 5. Strong Compliance: In line w

📍 Localização: DE 📦 Quantity: 2000 units

DHHI

For customers, this series of electrical control enclosures can accurately adapt to the control needs of heavy equipment such as port handling and coke oven machinery, fully protecting internal precision electrical components from dust, high temperature, and corrosion interference, stabilizing equipment operation accuracy and data reliability, reducing equipment failure rates and downtime, extending the service life of core equipment, and improving the neatness and operational safety of on-site equipment. For our factory, by providing customized electrical control solutions for high-end heavy industrial fields such as ports and coal chemical industry, we consolidate industrial cooperative relations, enhance the R&D and production capacity of precision sheet metal and non-standard enclosures, expand the market share of international heavy industry supporting equipment, and achieve long-term win-win results for both supply and demand parties.
Precise Scenario Adaptation: Can customize sizes, cutouts, protection classes, and installation methods according to the needs of different scenarios such as port handling, coke oven machinery, and stacker & reclaimers, perfectly adapting to various electrical control systems including cabs, low-voltage switch gears, rotatable control, and VFD control.
High-Grade Protection Performance: Protection class can reach IP55/IP65/IP67 (customizable), effectively preventing dust, water, corrosion, and impact, adapting to harsh conditions such as port dust, coke oven high temperature, and outdoor salt spray.
Durable and Reliable Materials: Optional cold-rolled steel (electrostatic powder coating) or 304/316 stainless steel, which is high-temperature resistant, wear-resistant, and corrosion-resistant, not easily deformed or aged after long-term use, ensuring stable equipment operation.
Modular Structure Design: Internal partition layout for strong/weak current, PLC, frequency converters and othe

📍 Localização: CN 📦 Quantity: 1000 units

Pronto para transformar sua vida?

Entre em contato agora para descobrir como nossos produtos podem atender às suas necessidades.

Dalian Yinlu Electrical Control Equipment Manufacturer

Informações rápidas da empresa
